The Position : Home > Products > Linear Motion Systems > Linear Bearings > Flanged Linear Ball Bushings > LMBK..LUU

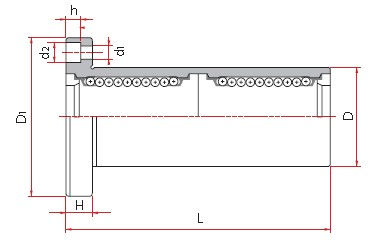

Parameter
StandardTypeLMBK…L
LMBK20L
SealedTypeLMBK..LUU
LMBK20LUU
Weight(g)
665
dr(Inch/mm)
1-1/4/31.750
drTolerance(inch/μm)
0/-.00065//0/-16
D(inch/mm)
2.0000/50.800
DTol.(inch/μm)
0/-.00090/0/-22
L(inch/mm)
5.0000/127.000
LTol.(inch/μm)
0/-.016//0/-400
D1(inch/mm)
3.1250/79.375
I(inch/mm)
2.5000/63.500
H(inch/mm)
.3750/9.525
Φ(inch/mm)
2.5625/65.088
d1(inch/mm)
.2812/7.144
d2(inch/mm)
.4060/10.319
h(inch/mm)
.2656/6.747
Eccentricity(inch/μm)
0.0010/25
Squanreness(inch/μm)
0.0010/25
BasicloadratingDynamic(CN)
2500
BasicloadratingStatic(CoN)
5490
