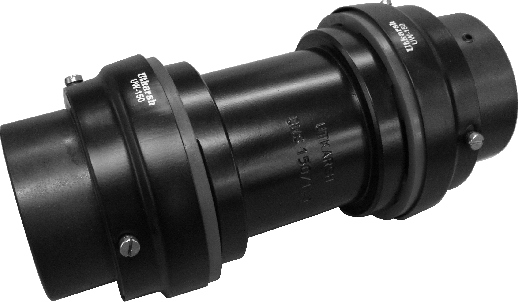

The Position : Home > Products > Power Transmission Components > Couplings > Elastomeric Couplings > JAW TYPE ‘SWR’ COUPLING
Parameter
Part No.
SWR225
BoreMin(mm)
20
BoreMax(mm)
65
TaperBush Size
2012

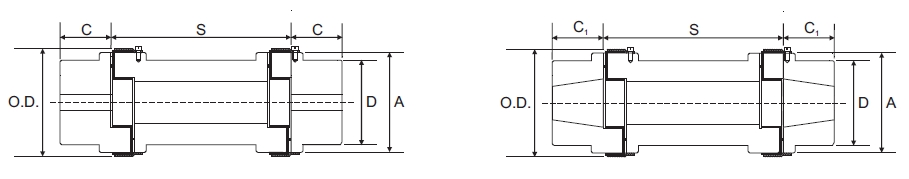

A(mm)
127
B(mm)
64
C(mm)
33.5
D(mm)
111
Collar O.D.(mm)
142
S*
100/140/180
Power at 100 RPM(kW)
2.775
Nominal Torque Rubber Black80 Sh A(Nm)
265
Nominal Torque Polyurethane Yellow80 Sh A(Nm)
325
Nominal Torque Polyurethane Yellow90 Sh A(Nm)
400
Normal Maximum Speed(rpm)
3000
