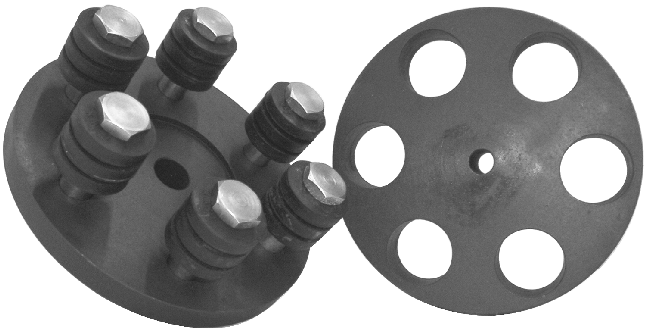

The Position : Home > Products > Power Transmission Components > Couplings > Elastomeric Couplings > CONE RING TYPE COUPLING
Parameter
Part No.
KX105
BoreMinHub(mm)
34
BoreMaxHub(mm)
120
Taper BushPin(mm)
3535

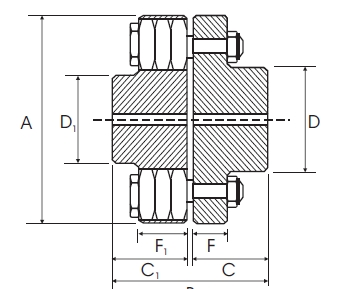

A(mm)
330
BPilot(mm)
237
BTaper(mm)
95.9
C(mm)
117
D(mm)
202
F(mm)
30
Power at 100 RPM(kW)
53.24
Nominal Torque (Nm)
5084
Normal Maximum Speed(rpm)
1730
