The Position : Home > Products > Mounted Bearing Units > Stainless Silver Series Bearing Units > SU000
SU005

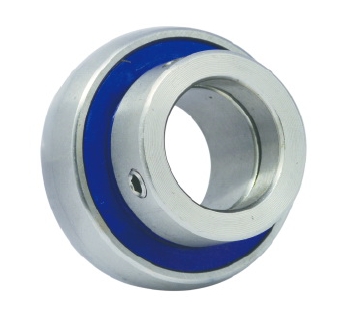

The SU000 is a stainless steel bearing unit with a ball bearing in a cast iron housing, offering radial load support. Its corrosion-resistant design suits general machinery in dry to mildly wet environments.
Metral:
High corrosion resistance for durable use in non-severe conditions.
Simple structure allows easy installation and maintenance.
Reliable radial load capacity in general industrial applications.

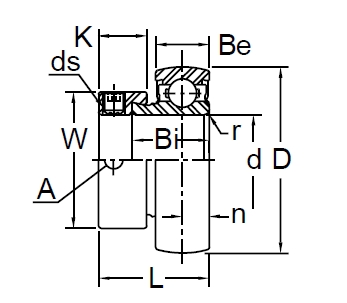

Parameter
MVBBearingUnitNo.
SU005
d(mm)
25
D(mm)
47
L(mm)
25.5
Bi(mm)
17.5
Be(mm)
12
r(mm)
1
n(mm)
6
k(mm)
12
W(mm)
36
A(mm)
5
ds(mm)
M5×0.8
Basic load rating (kgf.)Dynamic Cr
1030
Basic load rating (kgf.)Static Cor
595
Weight(kg)
0.17
