Parameter
StandardTypeLMBK…L
LMBK32L
SealedTypeLMBK..LUU
LMBK32LUU
Weight(g)
1760

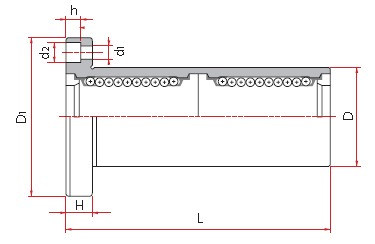

dr(Inch/mm)
2/50.800
drTolerance(inch/μm)
0/-.00065//0/-16
D(inch/mm)
3.0000/76.200
DTol.(inch/μm)
0/-.00100/0/-25
L(inch/mm)
7.7500/196.850
LTol.(inch/μm)
0/-.016//0/-400
D1(inch/mm)
4.3750/111.125
I(inch/mm)
3.5000/88.900
H(inch/mm)
.5000/12.700
Φ(inch/mm)
3.6875/93.662
d1(inch/mm)
.3440/8.731
d2(inch/mm)
.5000/12.700
h(inch/mm)
.3280/8.334
Eccentricity(inch/μm)
0.0012/30
Squanreness(inch/μm)
0.0012/30
BasicloadratingDynamic(CN)
6080
BasicloadratingStatic(CoN)
15900
