The Position : Home > Products > Power Transmission Components > Ball Transfer Units > Machined Bolt Fitted Ball Transfer Series > IK-N
Parameter
Model
IK-51N
Material ball
Bearing Steel
Material Housing
Carbon Steel
Load CapacityStandard(kg)
400
Load CapacityMax.(kg)
450

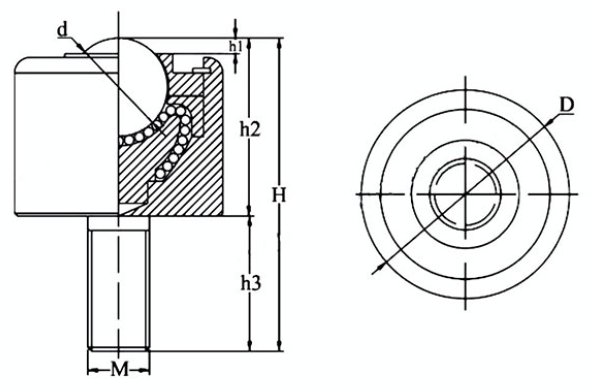

d(mm)
51
D(mm)
100
h1(mm)
12
h2(mm)
95
h3(mm)
50
H(mm)
145
M
M24
Net Weight(kg/unit)
4.4
