SD3136

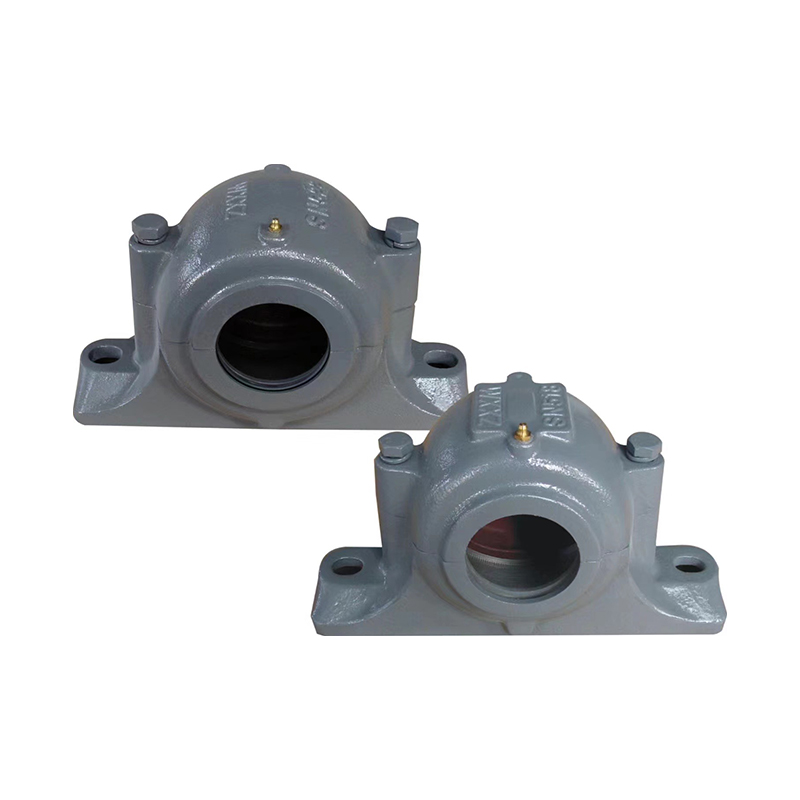

Extra-heavy-duty SD3100 cast iron plummer blocks with reinforced housing and double dust seals, for maximum radial loads in high-contamination environments.
Metral:
Reinforced cast iron with double dust seals
Split housing with grease channels for extended maintenance
Self-aligning to ensure long-term performance

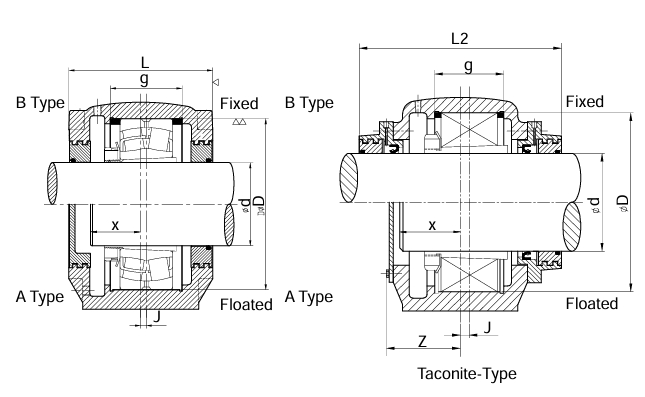

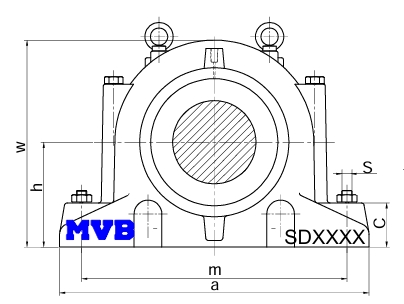

Parameter
MVB Housing No.
SD3136
d1(mm)
160
D(mm)
300
a(mm)
530
b(mm)
190
c(mm)
75
g(mm)
116
h(mm)
180
L(mm)
240
L2(mm)
318
w(mm)
355
m(mm)
450
n(mm)
110
J(mm)
15
x(mm)
68
Z(mm)
130
BOLTS
M24
WT(kg)
72
BEARINGNO.
23136K
Sleeve
H3136
Locating ringType
SR300x10
Locating ringQ.ty
2
Seals
TS36
End Cover
TSA36
