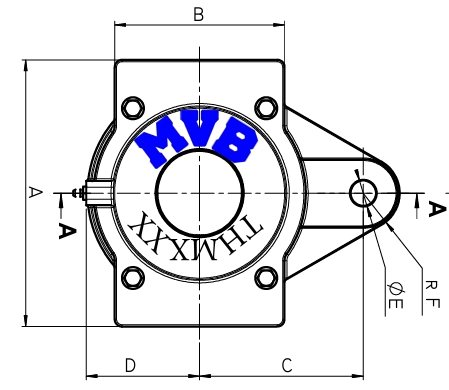

Parameter
UnitNo.
THM522
d(mm)
100
G(mm)
240
H(mm)
93
A(mm)
280
L(mm)
128
C(mm)
180
N(mm)
45
M(mm)
100
B(mm)
160
E(mm)
45
D(mm)
127
L1(mm)
158
L2(mm)
203
X(mm)
54
PinDia.(mm)
24
BEARINGNO.Ball
1222K/2222K
BEARINGNO.Roller
22222K/23222K
Adaptersleeve(metric)
H222/H322/H322/H2322
Spacer ring No.
200x21/200x13.5/200x13.5/200x10.2
Spacer ringQ.ty
2/2/2/1
HoleDia.
25/25
