SD3164

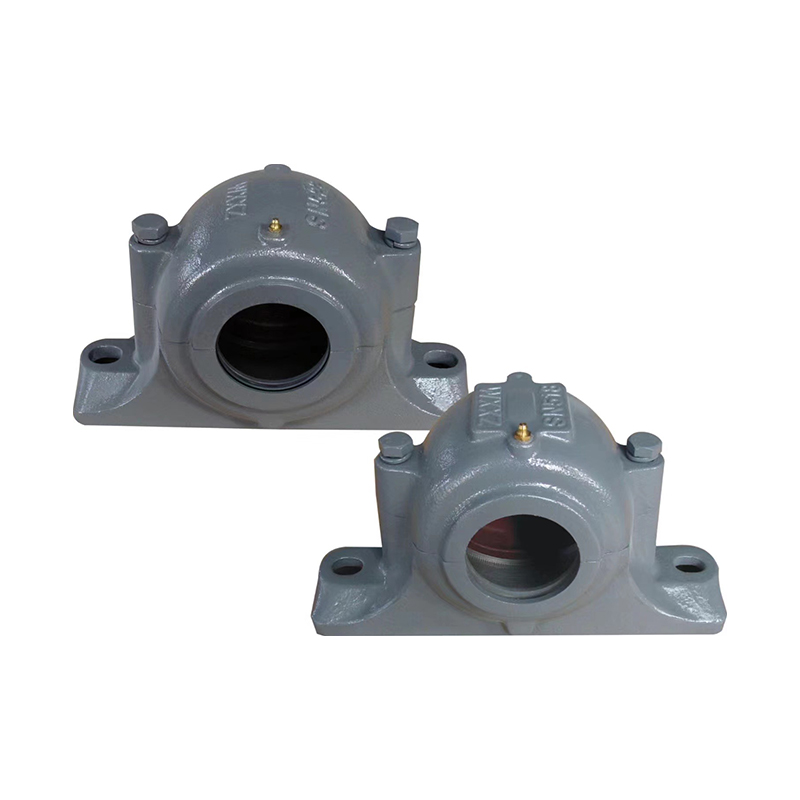

Extra-heavy-duty SD3100 cast iron plummer blocks with reinforced housing and double dust seals, for maximum radial loads in high-contamination environments.
Metral:
Reinforced cast iron with double dust seals
Split housing with grease channels for extended maintenance
Self-aligning to ensure long-term performance

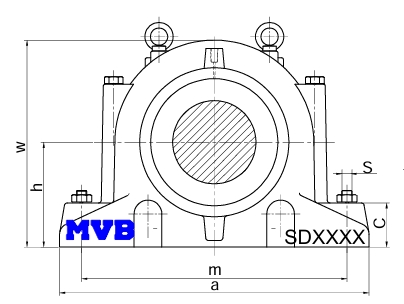

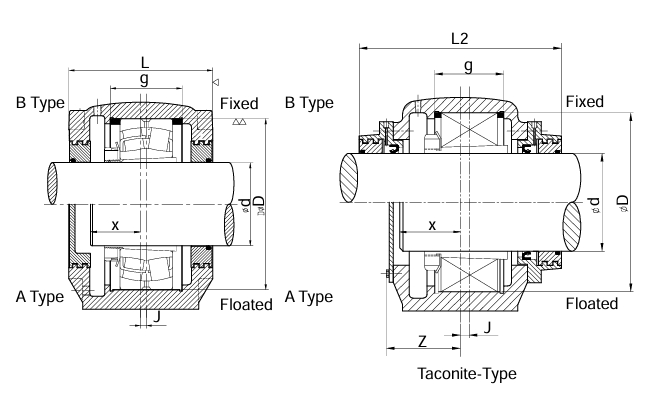

Parameter
MVB Housing No.
SD3164
d1(mm)
300
D(mm)
540
a(mm)
880
b(mm)
330
c(mm)
115
g(mm)
196
h(mm)
320
L(mm)
370
L2(mm)
448
w(mm)
630
m(mm)
750
n(mm)
200
J(mm)
23
x(mm)
120
Z(mm)
200
BOLTS
M36
WT(kg)
340
BEARINGNO.
23164K
Sleeve
H3164
Locating ringType
SR540x10
Locating ringQ.ty
2
Seals
TS64
End Cover
TSA64
