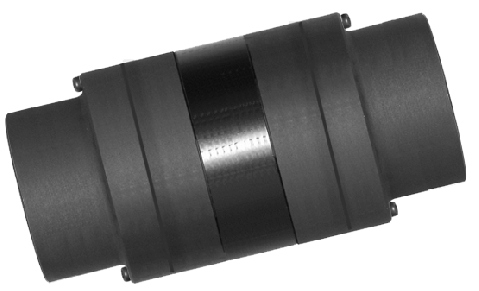

The Position : Home > Products > Power Transmission Components > Couplings > Elastomeric Couplings > JAW TYPE ‘CWS’ COUPLING
Parameter
Part No.
CWS280
BoreMin(mm)
30
BoreMax(mm)
75
A(mm)
194
B(mm)
140
C(mm)
60
D(mm)
70
Collar O.D.(mm)
200
S*
100/140/180
Power at 100 RPM(kW)
9.01
Nominal Torque Rubber Black80 Sh A(Nm)
860
Nominal Torque Polyurethane Yellow80 Sh A(Nm)
1075
Nominal Torque Polyurethane Yellow90 Sh A(Nm)
1290
NormalMaximumSpeed(rpm)
3000
