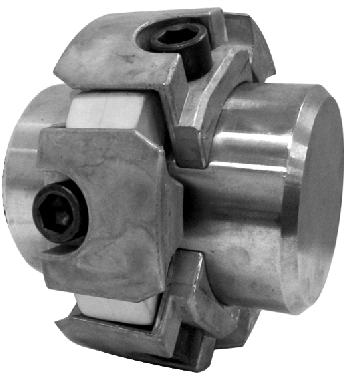

The Position : Home > Products > Power Transmission Components > Couplings > Elastomeric Couplings > CENTAFLEX ‘B’ COUPLING
Parameter
Part No.
CFB165
BoreMin(mm)
20
BoreMax(mm)
65

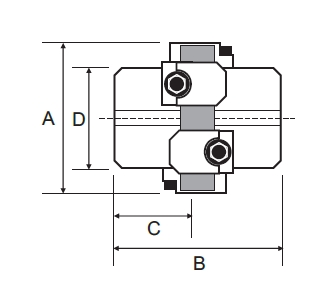

A(mm)
165
B(mm)
138
C(mm)
65
D(mm)
100
Power at 100 RPM(kW)
6.283
Nominal Torque Polyurethane(Nm)
600
Nominal TorqueHytrel(Nm)
850
Normal Maximum Speed(rpm)
4000
