The Position : Home > Products > Power Transmission Components > Chains > Engineering Chains > Bottle Washer Conveyor Chains

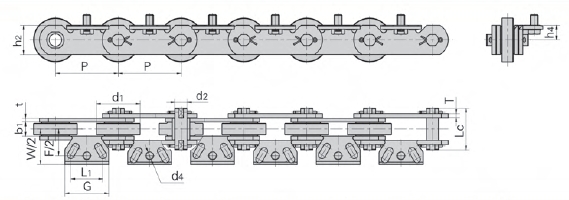

Parameter
Chain No.
P129A1F1-P
P(mm)
129
d1max(mm)
90
b1min(mm)
29
d2max(mm)
24.9
Lmax(mm)
86
h2max(mm)
60
t/Tmax(mm)
8
Tensilestrength kN/lbf
350.0/78683
Averagetensilestrength kN
385
Weightpermeter kg/m
22.6
