The Position : Home > Products > Power Transmission Components > Couplings > Elastomeric Couplings > JAW TYPE ‘C’ COUPLING
Parameter
Part No.
C2955
Style No.
44.5
BoreMin(mm)
102
BoreMax(mm)

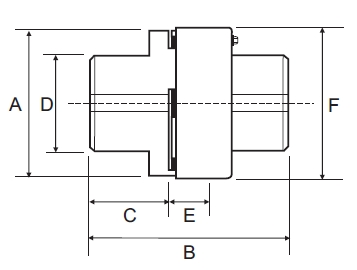

231.6
A(mm)
263.7
B(mm)
108
C(mm)
180.8
D(mm)
47.8
E(mm)
244.3
Power at 100 RPM(kW)
22.356
Nominal Torque Sox(Nm)
2135
Nominal Torque Hytrel(Nm)
4271
Normal Maximum Speed(rpm)
2300
