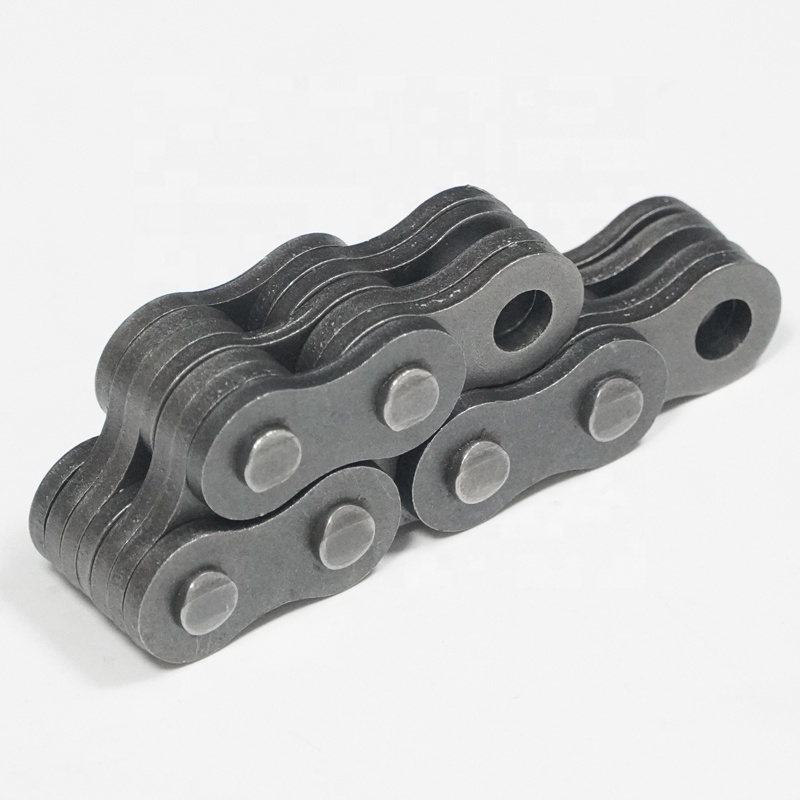

The Position : Home > Products > Power Transmission Components > Chains > Leaf Chains & Hoisting Chains > Hollow Pin Leaf Chains

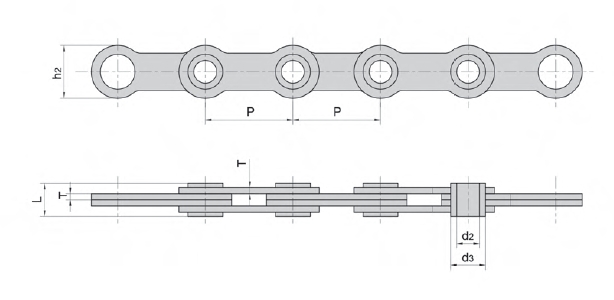

Parameter
Chain No.
LF36F2
P(mm)
36.513
Platelacing
2×2
h2max(mm)
24
Tmax(mm)
2.5
d2max(mm)
9.5
d3max(mm)
14.9
Lmax(mm)
15
Tensilestrength kN/lbf
30.0/6744
Averagetensilestrength kN
37.5
Weightpermeter kg/m
1.19
