722520A

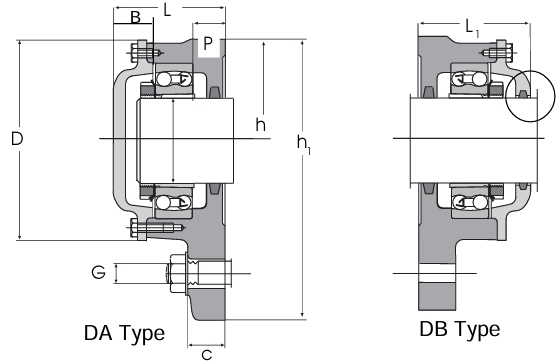

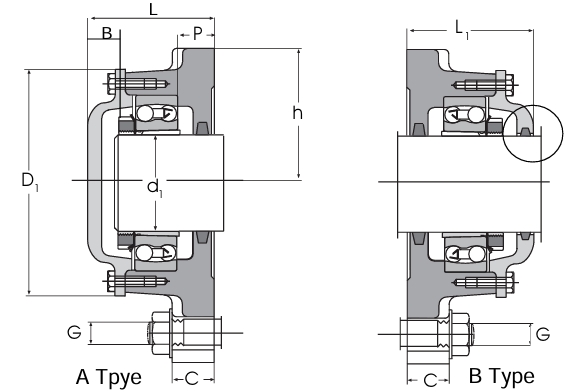

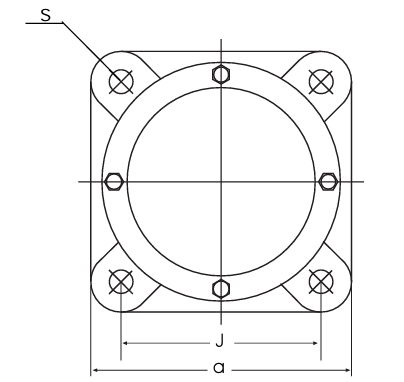

Specialized 722500-2 cast iron plummer blocks with unique housing and mounting design, for specific heavy-load industrial applications.
Metral:
Customized cast iron housing with specialized mounting
High radial load capacity for unique applications
Self-aligning to ensure operational reliability
Parameter
MVBHousingNo.(A)
722520A
MVBHousingNo.(B)
722520B
d1(mm)
90
Aa(mm)
127
Bb(mm)
127
A1(mm)
30
Ba(mm)
30
Bb(mm)
33
D1(mm)
224
H1(mm)
125
J(mm)
198
L(mm)
250
S(mm)
22
f1H12(mm)
7
f2(mm)
9.3
d2H12(mm)
92
d3H12(mm)
111
G(mm)
M20
WT(kg)
18
BEARINGNO.
1220K/2220K/22220EK
Adaptersleeve
H220/H320/H320

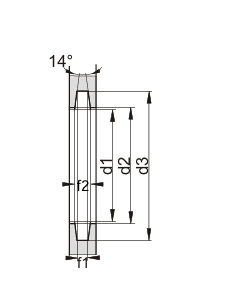

Locating ringType
FRB11/180/FRB10/180/FRB10/180
Locating ringQ.ty
2/1/1
