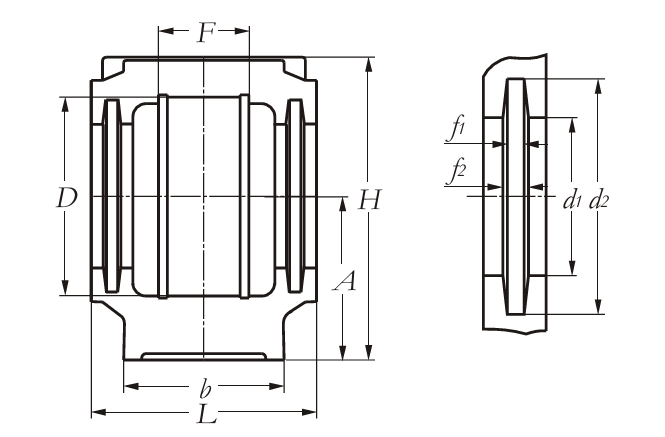

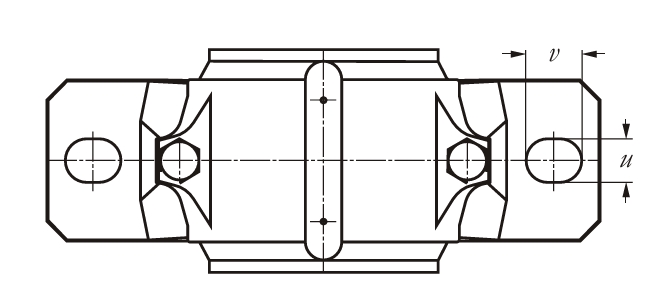

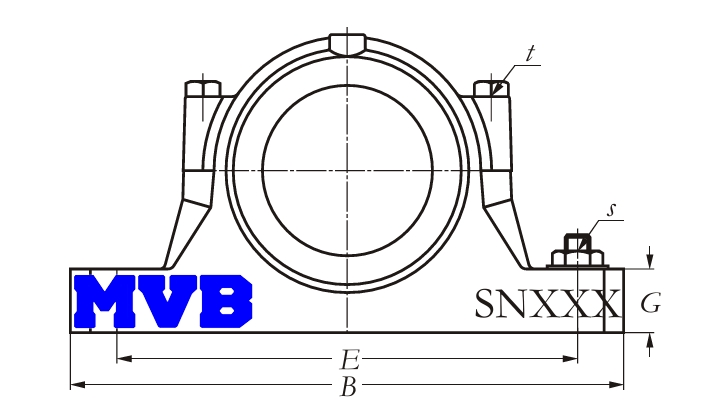

Parameter
MVB HOUSING SIZE
SN217
SHAFTDIAMETERd ( mm )
85

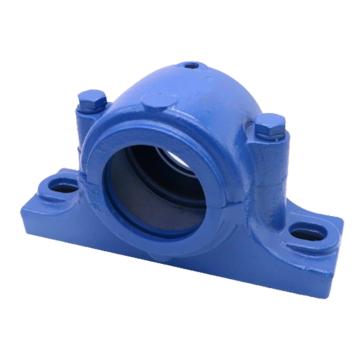

PLUMMER BLOCK HOUSING
SN 217
D( H8 ) ( mm )
150
B ( mm )
320
b ( mm )
90
G ( mm )
32
F( H13 ) ( mm )
46
A ( h13 ) ( mm )
95
L ( mm )
125
H ( mm )
185
E ( mm )
260
d1( H12 ) ( mm )
97
d2( H13 ) ( mm )
120
f1 ( mm )
8
f2 ( mm )
10.8
u ( mm )
22
v ( mm )
27
s ( mm )
M 20
t ( mm )
M 16
WEIGHT(Kg)
9.1
BEARING NUMBER
1217/2217/22217
NUMBER
SR 150X9 SR 150X10
QTY
2/1
FELT SEAL
FS 10X13X340
ENDCOVER
217 NA
