The Position : Home > Products > Mounted Bearing Units > Thermoplastic Housing Bearing Units > SUCSFB200-Inch Size
SUCSFB201-8

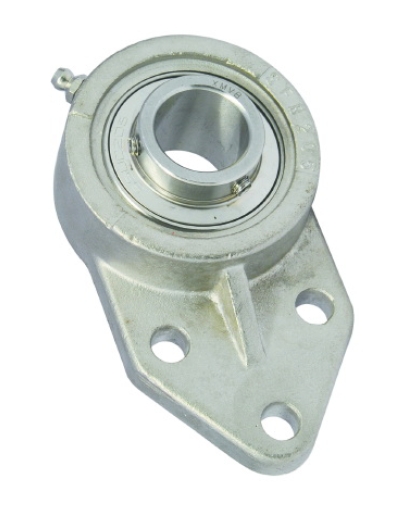

SUCFSB200 is a flange - mounted bearing unit. It has a cast iron housing and a spherical insert bearing. Ideal for radial loads in industrial setups, it features a three - bolt flange for stable installation and a split - type bearing design for easy maintenance.
Metral:
Three - bolt flange offers secure and straightforward mounting.
Spherical insert bearing self - aligns to deal with shaft misalignment.
Split - type structure allows for convenient disassembly and servicing.

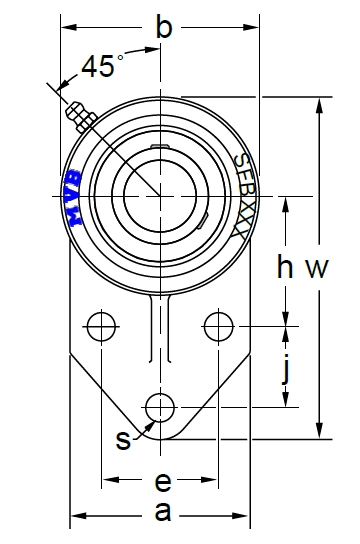

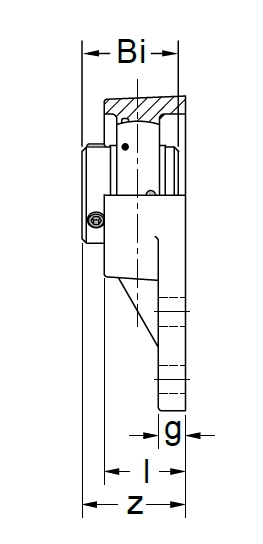

Parameter
MVBBearingUnitNo.
SUCSFB201-8
d(in.)
1/2
a(in.)
4.25
b(in.)
2.5
f(in.)
2.375
l(in.)
1
s(in.)
25/64
g(in.)
5/16
h(in.)
1.703125
j(in.)
0.875
e(in.)
1.5
i(in.)
0.625
z(in.)
1.34375
Bi(in.)
1.2205
n(in.)
0.5
Bolt(in.)
5/16
Bearing No.
SUC201-8
Housing No.
SFB204
Weight(Ibs.)
1.35805463083401
