The Position : Home > Products > Linear Motion Systems > Linear Bearings > Linear Ball Bushings > LMB..LUU

Parameter




            Standard TypeLMB…L
LMB12L
Sealed TypeLMB..LUU
LMB12LUU
Ball circuit
5
Weight(g)
195

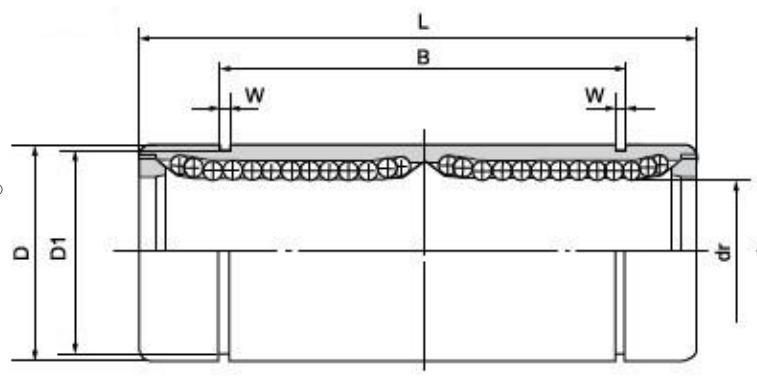

Nominalshaftdia.(mm)
3/4/19.050
drTolerance(inch/μm)
0/-.00050/0/-12
D(inch/μm)
1.2500/31.750
DTol.(inch/μm)
/0/-.00075/0/-19/
L(inch/μm)
3.0987/75.581
LTol.(inch/μm)
0/-0.012/0/-300
B(inch/μm)
2.3314/59.218
BTol.(inch/μm)
0/-0.012/0/-300
W(inch/μm)
.0559/1.422
D1(inch/μm)
1.1760/29.870
EccentricityPrecision(inch/μm)
0.0008/20
RadialClearance(max)(inch/μm)
﹣.0005/-20
Basic load ratingDynamicCN
1370
Basic load ratingStaticCoN
2740
